| BFG Gold ATX3.1 1000W |
| Intel Specification |
ATX 3.1 |
| Dimension(DxWxH) |
140mm(D) x 150mm(W) x 86mm(H) |
| AC Input |
100-240Vac |
| Input Current |
12A |
| Frequency |
47-63Hz |
| APFC PF value |
> 0.96 |
| 80Plus Certification |
80Plus Gold, up to 90% |
| Operating Temp. |
0-50°C |
| Fan Size |
120mm |
| Protection |
OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP |
| Safety |
cTUVus, TUV, CB, CE, FCC, BSMI |
| ErP regulation |
ErP 2014 Lot 3 |
| MTBF |
> 100,000hrs |

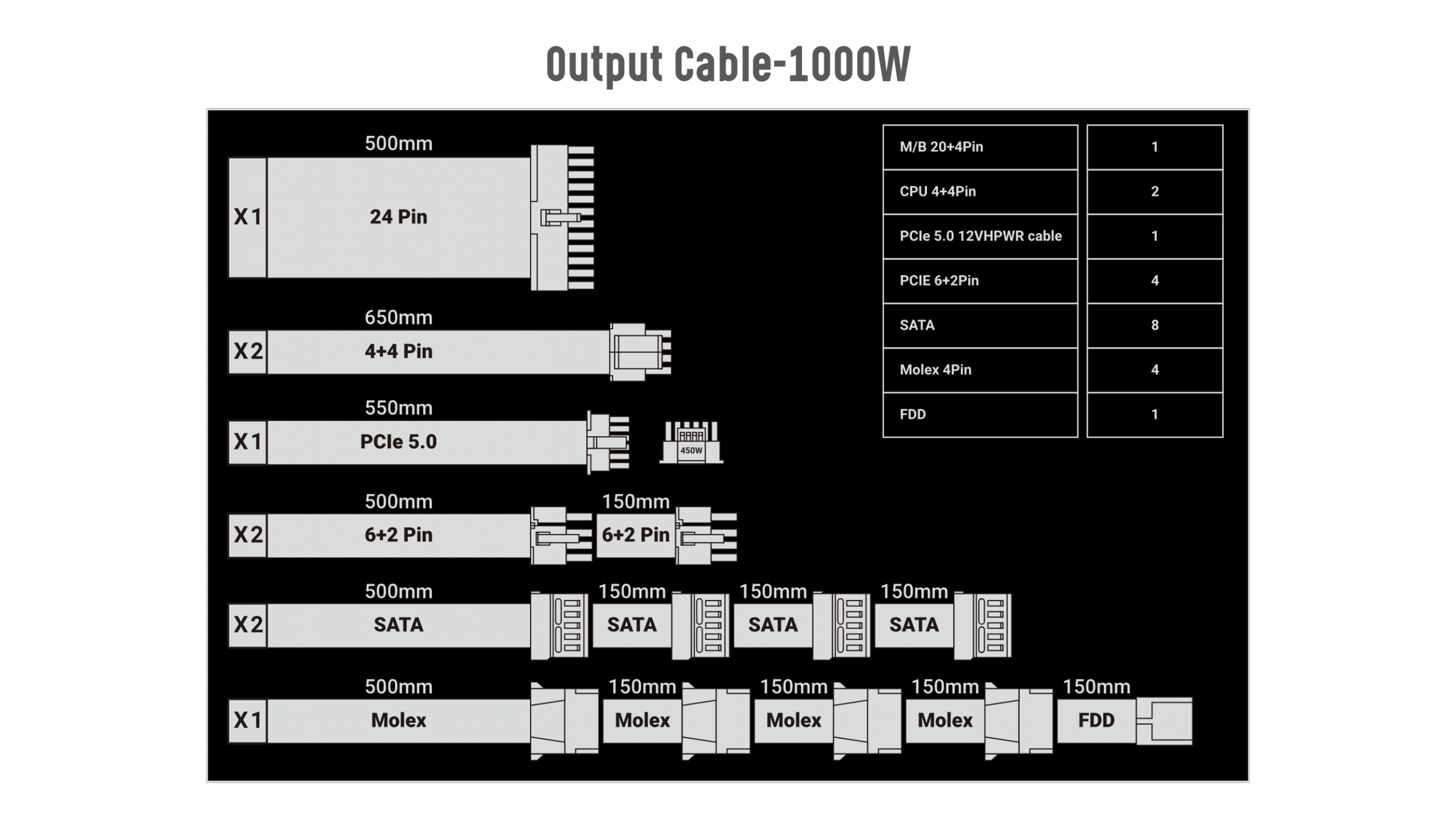

| Output cable Type |
Fully Modular │ Flat Cable |
| Connector Quantity |
24Pin x 1 │ 4+4Pin CPU x 2 │ PCIe5.0 12VHPWR x 1 │ 6+2Pin VGA x 2 │ SATA x 8 │ Molex x 4 │ FDD x 1 |
BFG Gold ATX3.1 850W |
| Intel Specification |
ATX 3.1 |
| Dimension(DxWxH) |
140mm(D) x 150mm(W) x 86mm(H) |
| AC Input |
100-240Vac |
| Input Current |
12A |
| Frequency |
47-63Hz |
| APFC PF value |
> 0.96 |
| 80Plus Certification |
80Plus Gold, up to 90% |
| Operating Temp. |
0-50°C |
| Fan Size |
120mm |
| Protection |
OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP |
| Safety |
cTUVus, TUV, CB, CE, FCC, BSMI |
| ErP regulation |
ErP 2014 Lot 3 |
| MTBF |
> 100,000hrs |
| Output cable Type |
Fully Modular │ Flat Cable |
| Connector Quantity |
24Pin x 1 │ 4+4Pin CPU x 2 │ PCIe5.0 12VHPWR x 1 │ 6+2Pin VGA x 4 │ SATA x 8 │ Molex x 4 │ FDD x 1 |
| |
| BFG Gold ATX3.1 750W |
| Intel Specification |
ATX 3.1 |
| Dimension(DxWxH) |
140mm(D) x 150mm(W) x 86mm(H) |
| AC Input |
100-240Vac |
| Input Current |
12A |
| Frequency |
47-63Hz |
| APFC PF value |
> 0.96 |
| 80Plus Certification |
80Plus Gold, up to 90% |
| Operating Temp. |
0-50°C |
| Fan Size |
120mm |
| Protection |
OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP |
| Safety |
cTUVus, TUV, CB, CE, FCC, BSMI |
| ErP regulation |
ErP 2014 Lot 3 |
| MTBF |
> 100,000hrs |
| Output cable Type |
Fully Modular │ Flat Cable |
| Connector Quantity |
24Pin x 1 │ 4+4Pin CPU x 2 │ PCIe5.0 12VHPWR x 1 │ 6+2Pin VGA x 2 │ SATA x 8 │ Molex x 4 │ FDD x 1 |
| |
| BFG Gold 650W |
| Intel Specification |
ATX 12V V2.4 |
| Dimension(DxWxH) |
140mm(D) x 150mm(W) x 86mm(H) |
| AC Input |
100-240Vac |
| Input Current |
9A |
| Frequency |
47-63Hz |
| APFC PF value |
> 0.96 |
| 80Plus Certification |
80Plus Gold, up to 90% |
| Operating Temp. |
0-50°C |
| Fan Size |
120mm |
| Protection |
OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP |
| Safety |
cTUVus, TUV, CB, CE, FCC, BSMI |
| ErP regulation |
ErP 2014 Lot 3 |
| MTBF |
> 100,000hrs |
| Output cable Type |
Fully Modular │ Flat Cable |
| Connector Quantity |
24Pin x 1 │ 4+4Pin CPU x 2 │ 6+2Pin VGA x 4 │ SATA x 8 │ Molex x 3│ FDD x 1 |
| |
| >BFG Gold 550W |
| Intel Specification |
ATX 12V V2.4 |
| Dimension(DxWxH) |
140mm(D) x 150mm(W) x 86mm(H) |
| AC Input |
100-240Vac |
| Input Current |
8A |
| Frequency |
47-63Hz |
| APFC PF value |
> 0.96 |
| 80Plus Certification |
80Plus Gold, up to 90% |
| Operating Temp. |
0-50°C |
| Fan Size |
120mm |
| Protection |
OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP |
| Safety |
cTUVus, TUV, CB, CE, FCC, BSMI |
| ErP regulation |
ErP 2014 Lot 3 |
| MTBF |
> 100,000hrs |
| Output cable Type |
Fully Modular │ Flat Cable |
| Connector Quantity |
24Pin x 1 │ 4+4Pin CPU x 2 │ 6+2Pin VGA x 2 │ SATA x 8 │ Molex x 3│ FDD x 1 |
